CO2 Sensor
Application:
HVAC & Refrigeration EquipmentProduct characteristics:
The gas chamber is gold-platedDescription

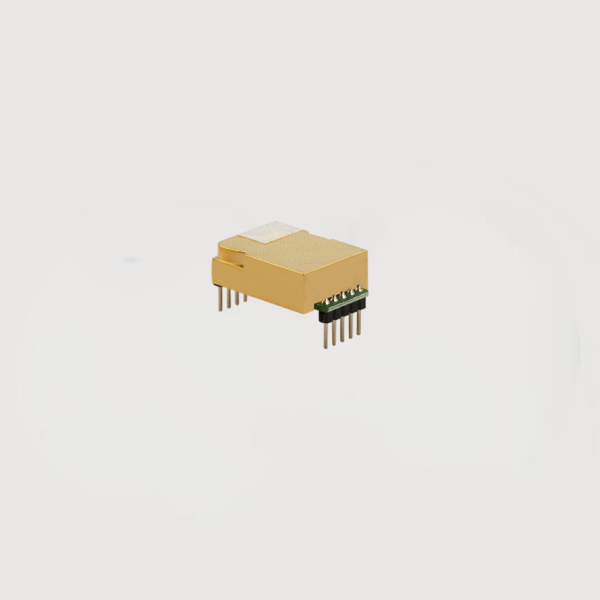

The TX-Z19C carbon dioxide gas sensor (hereinafter referred to as the sensor) is a general-purpose intelligent small sensor, available in both pin and terminal versions. It utilizes the non-dispersive infrared (NDIR) principle to detect CO2 in the air, exhibiting excellent selectivity, oxygen independence, and long lifespan. It features built-in temperature compensation and offers both serial port and PWM output for ease of use. This sensor is a high-performance device that combines mature infrared absorption gas detection technology with precise optical path design and sophisticated circuit design.
Technical specifications
| Model No. | TX-Z19C |
| Detection Gas | CO2 |
| Working voltage | 5.0±0.1V DC |
| Average current | <40mA(@5V power supply) |
| Peak current | 125mA(@5V power supply) |
| Interface level | 3.3V (Compatible with 5V) |
| Detection Range | 400~10000ppm(optional) |
| Output signal | Serial Port(UART)(TTL level 3.3V) |
| PWM | |
| Preheat time | 1 min |
| Response Time | T90<120 s |
| Working temperature | -10～50℃ |
| Working humidity | 0～95%RH(No condensation) |
| Storage temperature | -20~60℃ |
| Weight | 5g |
| Lifespan | >10 years |
Common range and accuracy
| Gas name | Molecular formula | Detection range | Resolution | Accuracy |
| carbon dioxide | CO2 | 400-2000ppm | 1ppm | ±(50ppm+5% reading value) |
| 400-5000ppm | ||||
| 400-10000ppm |
Pin Definition (Terminal)
| Pin Name | Pin Description |
| Pin 4 | Vin Voltage Input |
| Pin 3 | GND |
| Pin 2 | Reserve |
| Pin 7 | PWM |
| Pin 1 | HD (zero calibration, low level for more than 7 seconds is effective) |
| Pin 5 | UART (RXD) 0～3.3 V data input |
| Pin 6 | UART (TXD) 0～3.3 V data output |
Application
Production workshop
Certificate Qualification
TenSensor, China's first listed gas sensor company,Tensensor can provide more than 100 varieties of six series including：
semiconductor gas sensor
electrochemical gas sensor
infrared gas sensor
dust sensor
pyroelectric sensor
thermopile sensor, etc.
which can be used for more than 200 kinds of gas and infrared, dust and other indicators detection, widely used in the field of security for detecting gas leakage, noxious gas leakage, smog and fire, the field of family, office and factory for detecting HCHO, VOC, CO2, PM2.5 and so on.
Moreover, the solutions for security, household electrical appliances, consumer electronics, smart home, instruments and meters are available.
For more information about TX-Z19C sensor, please contact account manager.
