CH4 Gas Sensor
Application:
Household Combustible Gas AlarmProduct characteristics:
Ultra-low power consumptionDescription

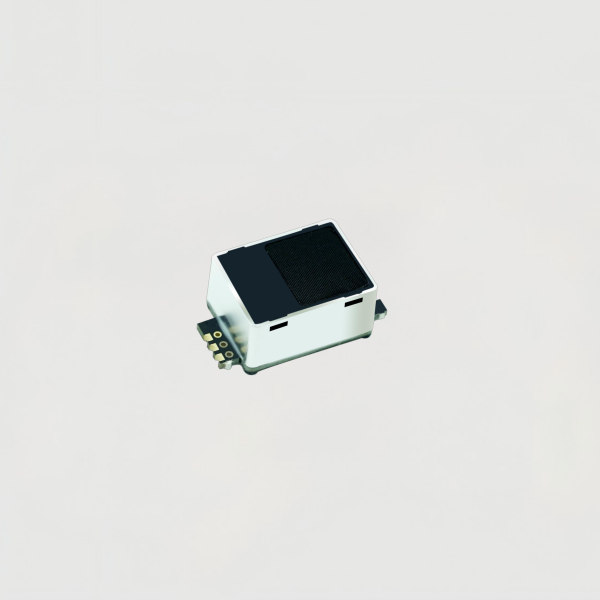

TX711-A70 Combustible Gas Sensor (hereinafter referred to as "the Sensor") is a compact, general-purpose sensor that utilizes the Non-Dispersive Infrared (NDIR) principle to detect combustible gases present in the air. It features excellent selectivity, is independent of oxygen concentration, offers a long service life, incorporates built-in temperature compensation, and utilizes a digital output for ease of use. This high-performance sensor is manufactured by seamlessly integrating mature infrared absorption gas detection technology with precision optical and circuit designs.
Specifications
| Model No. | TX711-A70 |
| Target Gas | Combustible gas |
| Power Supply | DC(3.3~5.5)V |
| Average Current | <50μA(@3.3Vpower supply,in clean air) |
| Peak Current | 40 mA(@5Vpower supply) |
| Interface level | 3.0V(compatible with 5V) |
| Range | 0~100%LEL optional(see Tab2) |
| Output Signal | Serial(UART)(TTL level 3.0V) |
| Pre-heating time | 180s |
| Response time | T9o<30s |
| Working Temperature | -10℃~60℃ |
| Working humidity | 0～95%RH(Non-condensation) |
| Storage Temperature | -20℃~60℃ |
| Weight | 5g |
| Anticipated Life | >10 years |
Tab 2 Regular Measurement Range and Accuracy
| Gas | Molecular formula | Measurement Range | Resolution | Accuracy |
| Methane | CH4 | 0～5.00%VOL | 0.01%VOL | ±0.15%VOL(@10~40℃) ±0.25%VOL(-10~10℃,40~60℃) |
