Products
Module
Application:
air purifiersProduct characteristics:
High sensitivityDescription

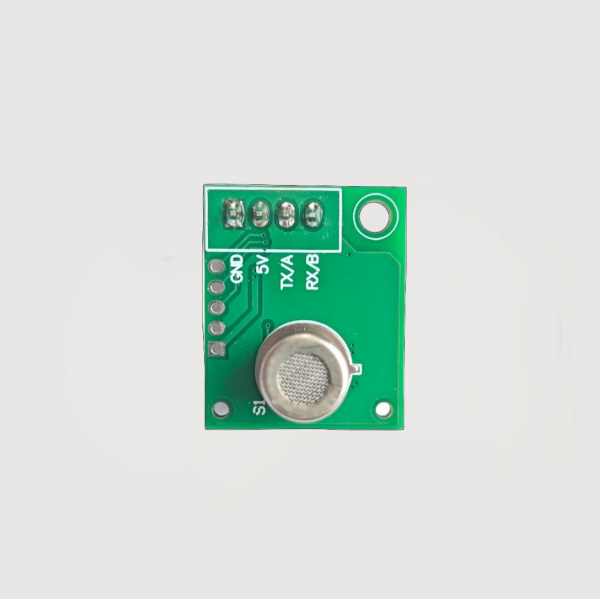

TX210-T52 module is an odor detection module developed specifically for pet odor detection applications. It utilizes an advanced chip-type thick-film semiconductor gas-sensitive element, which exhibits extremely high sensitivity to hydrogen sulfide, simulated pet odor gases, VOCs, ammonia, and other similar substances. Before leaving the factory, the module undergoes aging, debugging, and calibration. It features UART digital output functionality, making communication simple and convenient to use.
Specifications
| Model | TX210-T52 |
| Detection gas | H2S、Pet odor simulation gas、VOCs、NH3,etc. |
| Physical interface | XH2.54-4P terminal |
| Output | 1-500 level |
| Operating voltage | 5.0±0.2V DC(No voltage reverse connection protection) |
| Preheating time | 15minutes(Trend detection can be performed within 15 minutes.) |
| Output data type | UART(5.0V)output |
| Operating current | ≤70mA |
| Operating temperature | 0-50℃ |
| Operating humidity | ≤95%RH(No condensation) |
| Storage temperature | -20-60℃ |
| Storage humidity | ≤60%RH |
