C3H8 Gas Sensor

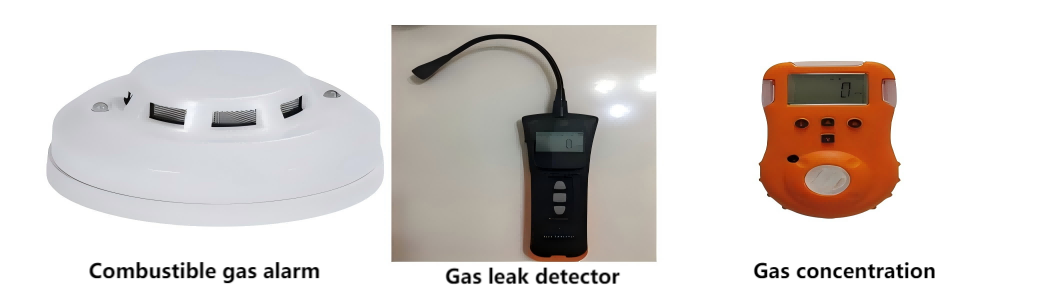

for indoor combustible gas alarm
Application:
For alarm/monitorProduct characteristics:
Long lifeSensitive material of MQ-G5 gas sensor is SnO2, which with lower conductivity in clean air. When the target flammable gas exist, the sensor’s conductivity gets higher along with the gas concentration rising. Users can convert the change of conductivity to correspond output signal of gas concentration through a simple circuit.
MQ-G5 gas sensor has high sensitivity to butane, propane, methane and can detect methane and propane at the same time. It also can detect kinds of flammable gases, especially LPG(Propane). It is a kind of low–cost sensor for many applications.
Media | propane or butane |
Sealing type | rubber seat, 100 mesh stainless steel cap |
Testing range | 100-10000ppm. |
Loop voltage | Vc=5v±0.1v |
Heating voltage | Vh=5v±0.1v |
Load resistor | RL=1K-50K(adjustable) |
Heating power | ≤800mW(Vh=5v) |
Test temperature/ humidity | 20℃±2℃, 65%±5%RH |
Pre-heating time | 24h |
Working temperature | -10℃~+50℃ |
Storage temperature | -20℃~+60℃ |
Humidity | <95%RH |
Response time | Tx≤20s |
Recovery time | Th≤30s |
