Among environmental factors, temperature and humidity are two indicators that are closely related to our lives.

    Among environmental factors, temperature and humidity are closely related to our daily lives. Precisely because of their close connection to our lives, temperature and humidity sensors are a widely used sensor type.

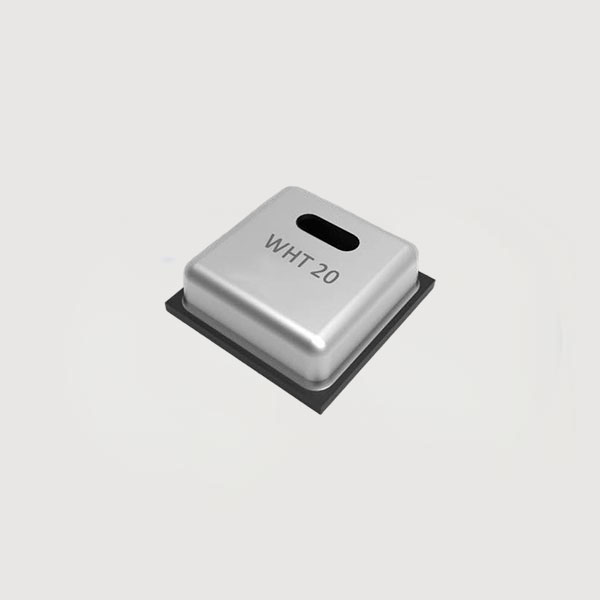

WHT20 MEMS type Temperature and Humidity Sensor

    Tensensor's WHT20 series temperature and humidity sensors utilize the transistor's Vbe-temperature characteristic for high-precision temperature detection and the change in dielectric constant after moisture absorption to detect ambient humidity. These sensors incorporate the latest integrated circuit signal processing technology to create a single-chip solution.

    The WHT20 temperature and humidity sensor is housed in a reflow-resistant dual-inline flat leadless SMD package. Temperature and humidity signals can be read out on separate pins. The package measures 3.0 × 3.0 mm and is 1.0 mm high. The sensor outputs a calibrated digital signal in standard I2C format.

    Product Features：

    1. High accuracy, ±2.0% RH and ±0.3°C

    2. Wide supply voltage range, from 2.0 V to 5.5 V

    3. SMD package, suitable for reflow soldering

    4. Fast response and strong anti-interference ability

    5. Excellent long-term stability under high humidity conditions

    Product application：

    Temperature and humidity sensor is an important chemical sensor and has a wide range of applications in warehousing, industrial production, process control, environmental monitoring, household appliances, meteorology, etc.

    If you have any needs of temperature and humidity sensor, pls feel free to contact us~
